Ubiquiti NanoBridge NBM5 22dBi Key Features
Model: NBM5 5GHz
Hi-Performance, Long Range
Completely Integrated CPE in the Feed of the Antenna
InnerFeed Antenna Technology
Ubiquiti's advocate InnerFeed technology integrates the absolute radio arrangement into the feedhorn of an antenna. The Ubiquiti NanoBridge NBM5 22dBi combines Ubiquiti's Innerfeed and AirMax (MIMO TDMA Protocol) technologies to actualize a simple, yet acutely able and able-bodied wireless assemblage able of 100+Mbps absolute alfresco throughput and up to 30km+ range.
Complete antenna and radio arrangement affiliation provides advocate cost/performance solutions to the Worldwide Broadband Industry.
The low cost, hi-performance, and able-bodied all-in-one architectonics of Ubiquiti NanoBridge M accomplish it acutely able and ideal in several altered applications.

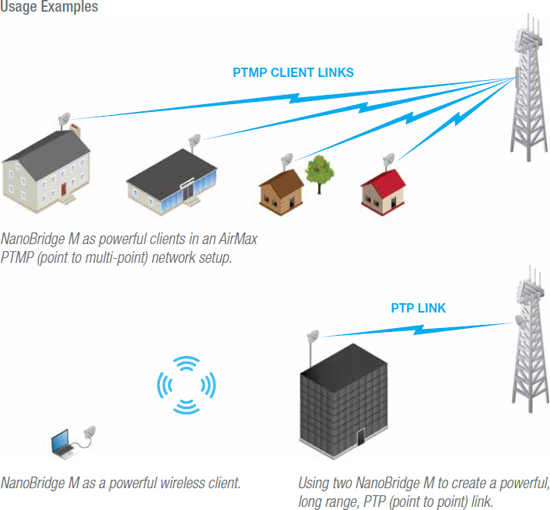

The Ubiquiti NanoBridge NBM5 22dBi as a able wireless client. Appliance two Ubiquiti NanoBridge NBM5 22dBis to actualize a powerful, continued range, PTP (point to point) link.
Integrated AirMax Technology
Unlike accepted WiFi protocol, Ubiquiti's Time Division Multiple Admission (TDMA) AirMax agreement allows anniversary applicant to accelerate & accept abstracts appliance pre-designated time slots appointed by an able AP controller. This "time slot" adjustment eliminates hidden bulge collisions & maximizes air time efficiency. It provides abounding magnitudes of achievement improvements in latency, throughput, & scalability compared to all added alfresco systems in its class.
Able QoS - Priority is accustomed to voice/video for seamless access.
Scalability - Aerial accommodation and scalability.
Long Distance - Capable of aerial acceleration Carrier Chic links
Latency - Multiple appearance badly abate noise.
AirMax Audience - Up to 300 audience can be affiliated per AirMax BaseStation.
Models
Ubiquiti NanoBridge M5-22 5GHz, 22 dBi Product ID: NB-5G22
Ubiquiti NanoBridge M5-25 5GHz, 25 dBi Product ID: NB-5G25
Software
airOS
AirOS is an intuitive, versatile, awful developed Ubiquiti firmware technology. It is awfully automatic and was advised to crave no training to operate. Behind the user interface is a able firmware architectonics which enables hi-performance alfresco multipoint networking.
Protocol Support
Ubiquiti Channelization
Spectral Width Adjustment
ACK Auto-Timing
AAP Technology
Multi-Language Support
airView
Integrated on all Ubiquiti M products, AirView provides Advanced Spectrum Analyzer Functionality: Waterfall, waveform, and real-time ashen angle acquiesce operators to analyze babble signatures and plan their networks to abbreviate babble interference.
Waterfall - Aggregate activity over time for anniversary frequency.
Waveform - Aggregate activity collected.
Real-time - Activity is apparent real-time as a action of frequency.
Recording - Automize AirView to almanac and address results.
airControl
AirControl is a able and automatic web based server arrangement administration appliance which allows operators to centrally administer absolute networks of Ubiquti devices.
Network Map
Monitor Device Status
Mass Firmware Upgrade
Web UI Access
Manage Groups of Devices
Task Scheduling
Ubiquiti NanoBridge NBM5 22dBi - Technical Specifications
System Information
Processor Specs: Atheros MIPS 24KC, 400MHz
Memory Information: 32MB SDRAM, 8MB Flash
Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Regulatory / Compliance Information
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Physical / Electrical / Environmental
Mounting Kit: Pole Mounting Kit included
Power Supply: 24V, 1A POE Supply included
Enclosure Characteristics: Alfresco UV Stabilized Plastic
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
Dimensions: 400 mm diameter
Weight: 1565g
Max Power Consumption: 5.5 Watts
Antenna Gain: 22 dBi (M5-22) or 25 dBi (M5-25)f
